Class D (installation)

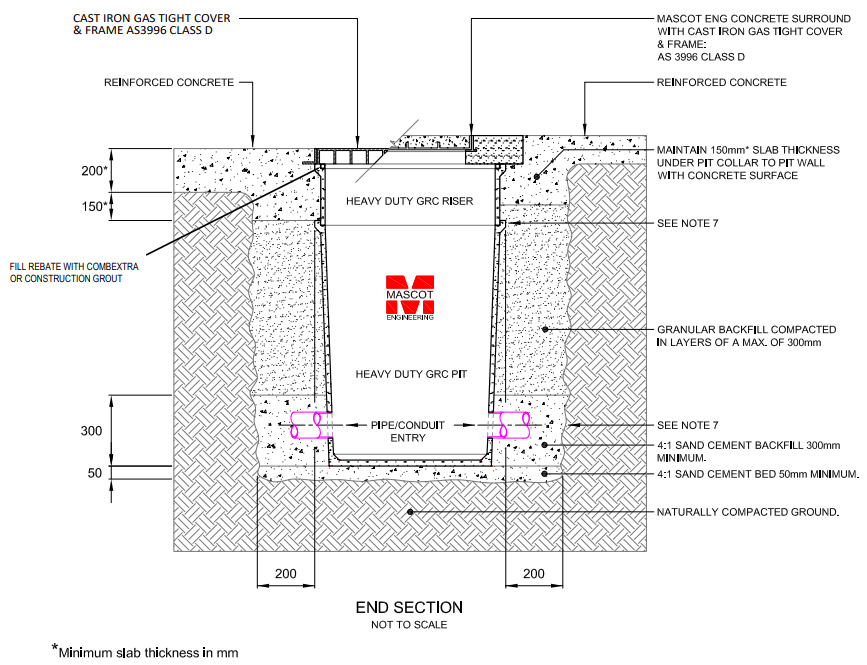

Typical installation for heavy duty traffic loads for concrete surfaces

Class D 8000kg nominal wheel load
AS 3996-2006

Notes

1. Approved for installations up to 5,000mm deep. Refer to note 5.
2. GRC MPa rating to 60Mpa @ 28days
3. When specific site conditions vary, consult design engineer/consultant
4. Risers are available
5. For installations in excess of 1,800mm deep, refer to special depth instructions: DWG No. GRCIISD
6. Any depths beyond 900mm, step irons are required at 250mm intervals, or as specified
7. For all pipe/conduit entries and riser joins, use Mascot’s two part epoxy
8. For all further enquiries, contact Mascot on 1300 885 295
9. Instructions for installation in flexible pavement also available

Drawing No: CPGRCIICD
