NSW Grease Arrestors

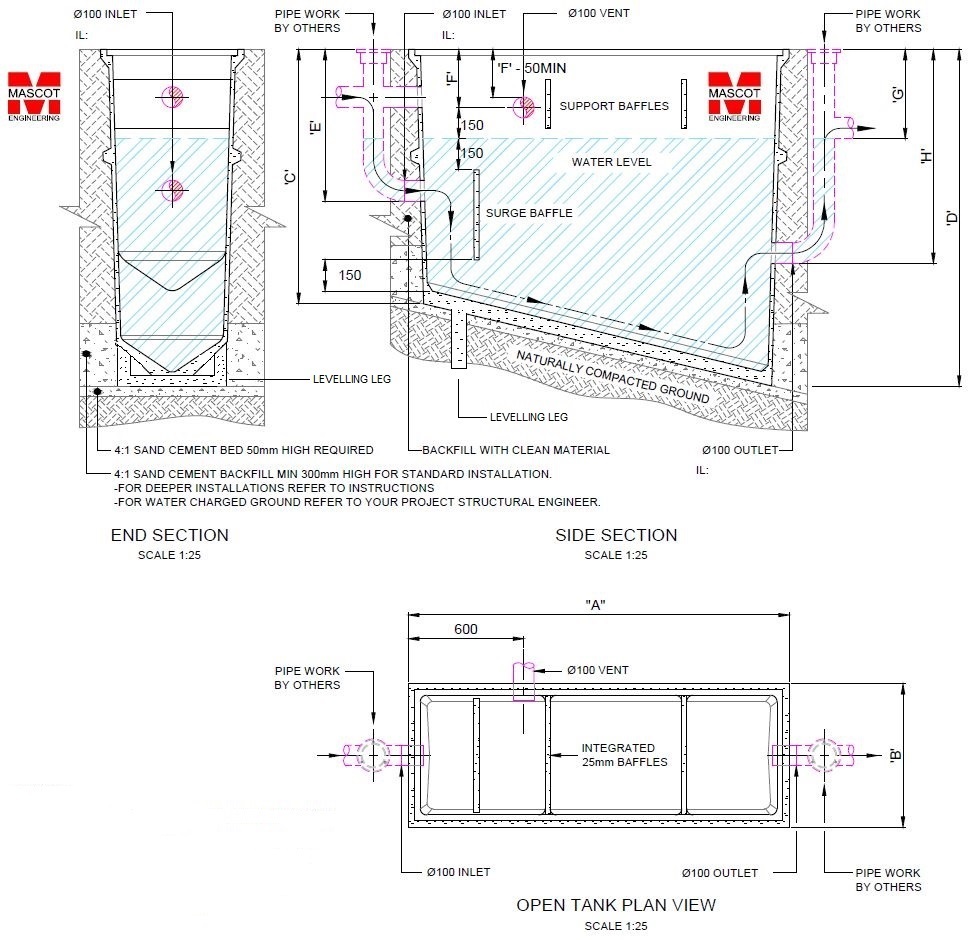

| Product Code | Capacity (L) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| GA100 | 1000 | 1830 | 690 | 1245 | 1620 | 730 | 280 | 430 | 1030 | 325 |
| GA150 | 1500 | 2610 | 870 | 1265 | 1765 | 730 | 280 | 430 | 1030 | 677 |
| GA200 | 2000 | 2610 | 870 | 1565 | 2065 | 730 | 280 | 430 | 1060 | 812 |
| GA300 | 3000 | 2610 | 870 | 2165 | 2665 | 750 | 300 | 450 | 1050 | 890 |
Notes
- Tested and approved for installations up to 5000mm deep
- 300mm risers available
- Large range of concrete surrounds and covers to suit all load ratings
- MPa rating for GRC: 60 MPa @ 28 days
- Available extras:
- Step irons
- Support frame & work platforms for above ground installations
- Other pipe sizes available upon request
- Fitted standard with PVC fittings. Other material (HDPE etc) available
- Cover will add to overall depth
- Internally coated with acid resistant tar epoxy paint
- Confirm with local authority for suitability prior to purchase/install.
- Installation instructions must be followed.
