Evomax Ductile Iron
HP10 Ductile Iron Class D Grate

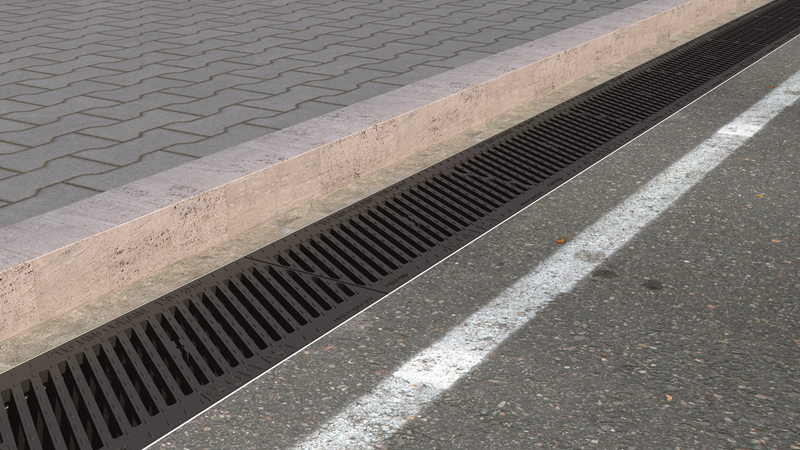

Form and function. The Evomax Channel and heelproof iron grated drainage system is designed to cover all bases an installer or designer may come up against.
Traditionally Class D grates have been designed to suit traffic from trucks and other heavy machinery and vehicles. However this new generation of grates available with the EvoMax channel also caters for pedestrians.
When considering the heavy loads intended in a Class D environment, we need to ensure the channel is also suitable. With a protective steel edge rail shielding the HDPE edge, the Evomax with Class D Iron trench grate is built to last.
With a Class D load rating, this is ideal for commercial, industrial and infrastructure use. Lighter duty (Class B) galvanised steel grates are also available for the EvoMax 150 & EvoMax 200.
Product Code: TCEM150HC10GS – TCEM200HC10GS
Heelproof & Boltdown
Balancing heavy loads of Class D, hydraulic design and pedestrian friendly grating difficult and there’s always a compromise.
This EvoMax Iron trench grate has slots no wider than 10mm whilst still achieving over 240kN load rating (Class D). This grate was developed to protect most high heels, walking canes and bicycles whilst still offering efficient hydraulic flow. You can read more about heelproof grating design here.
Unauthorised access is prevented with the inclusion of a boltdown facility – eight bolts per metre.
Modular & Pre-Assembled
Evomax 150 & 200 is fitted with a tongue and groove ends allowing for easy and simple joining of the one metre (1m) channels to create the length you need without fussy fixings and fittings.
Each preassembled 1m length of Evomax channel has two Iron heelproof grate and eight boltdown facilities (four per grate).
With the Evomax 150 weighing in at 19kg per metre, and the Evomax 200 at 21kg, this pre-assembled Class D trench drain is simple and easy to install to any length required.
100% Recycled Materials
Sourced from industrial scraps and products at the end of their operational life, the Evomax Channel body is crafted from 100% recycled high-density polyethylene (HDPE). More information on the sustainable and responsible manufacturing process and how Technodrain contributes to a circular economy can be found here.
UV Protection
UV filters are added to enhance the finished products resistance to sunlight and environmental factors to extend its lifespan in demanding conditions.
Non-Rocking
To prevent grates rocking, the protective edge frame fitted to the Evomax range provide a level surface that when paired with the boltdown facility reduces the chance of grates rocking whilst subject to traffic.
Hydraulic Flow & Knock-Outs
Evomax’s 10mm heelproof iron Class D grates are designed to maximise efficiency, to assist with high flow rates. The internal channel of the Evomax is smooth and rounded (self cleaning) whilst each channel is fitted with pipe outlet points in both the sides and base.
Accessories

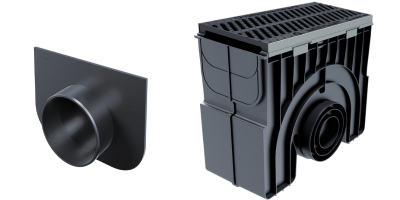

End caps & in-line pits available for the Evomax.
| End Cap | Evomax 150 | Evomax 200 |
|---|---|---|
| End Cap 110 Outlet | TE150H | TE200H |
| Sump Unit with Ductile Grate | TPEM150C10GS | TPEM200C10GS |

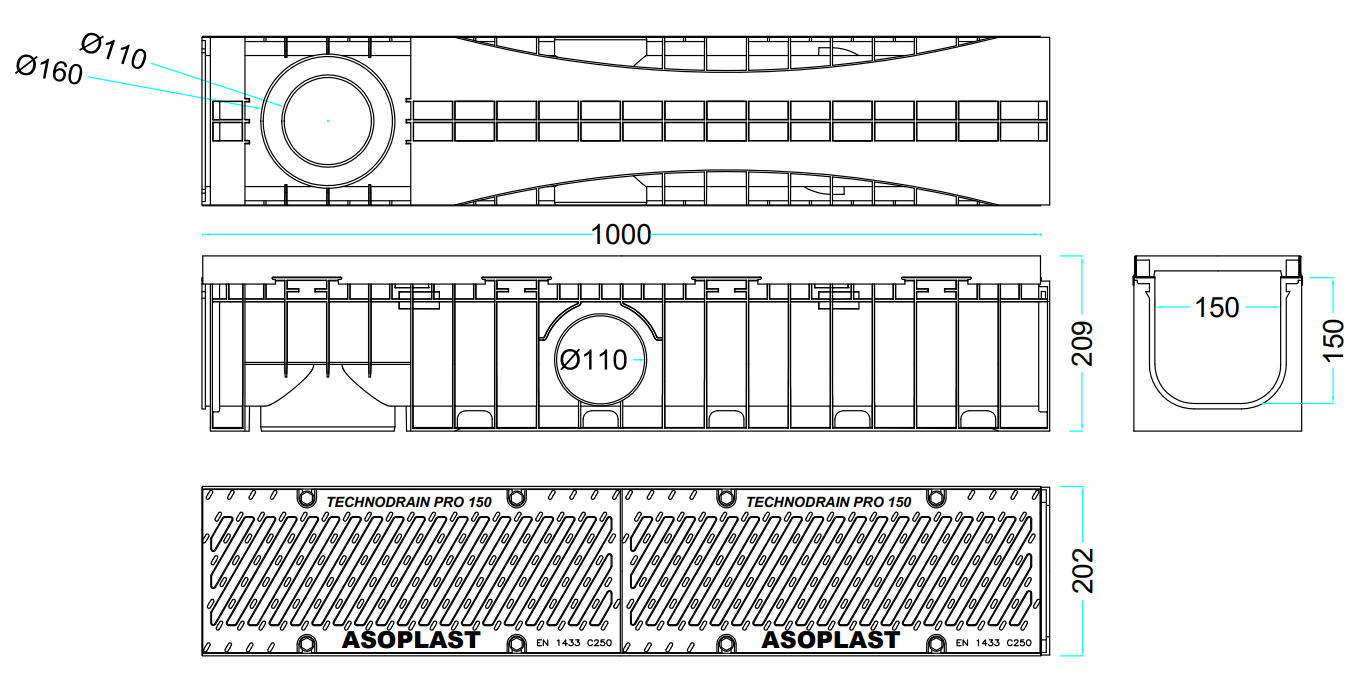

Technical Specifications – Evomax 150
Product Code: TCEM150HC10GS
Evomax 150 Channel Technical Data
| Length (mm) | Overall Width (mm) | Internal Width (mm) | Overall Depth (mm) | Internal Depth (mm) | Edge Rail (mm) |
|---|---|---|---|---|---|
| 1000 | 200 | 150 | 209 | 150 | 25 |
Evomax 150 Heelproof-10 Class D Iron Grate Technical Data
| Length (mm) | Overall Width (mm) | Overall Depth (mm) | Slot Opening Size (mm) | Bolts per metre |
|---|---|---|---|---|
| 500 | 195 | 25 | 10 | 4 |
Total weight of assembled Evomax 150 Class D Iron Grate (1m of channel and two iron grates) is 18.8kg.

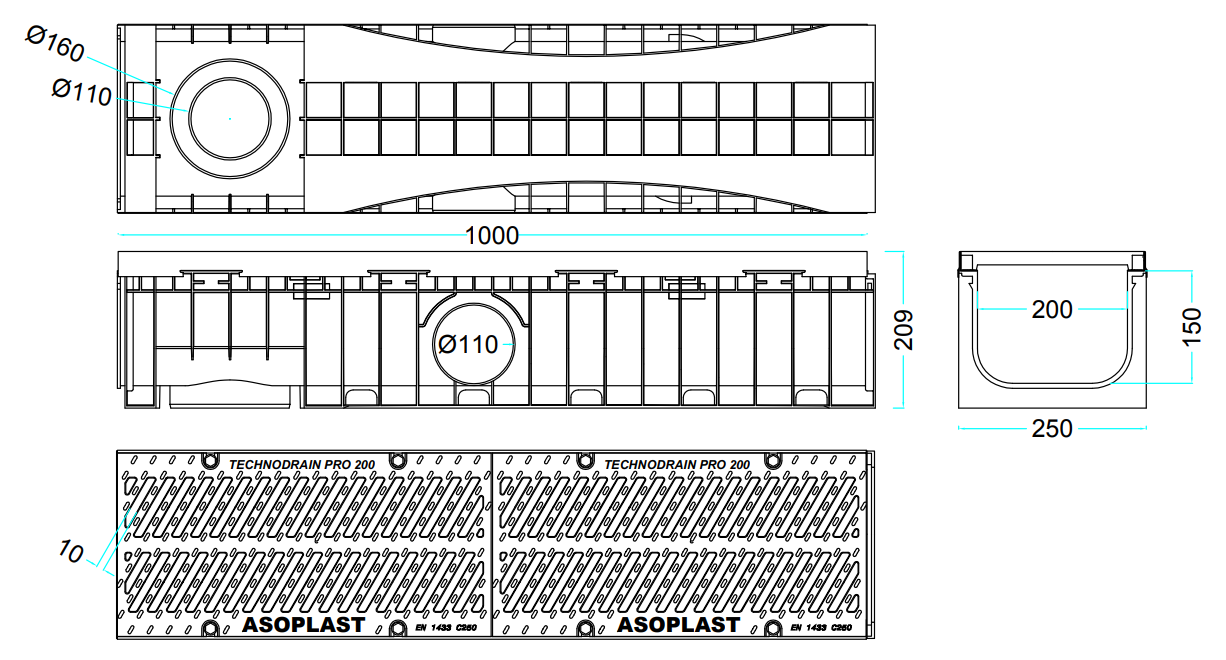

Technical Specifications – Evomax 200
Product Code: TCEM200HC10GS
Evomax 200 Channel Technical Data
| Length (mm) | Overall Width (mm) | Internal Width (mm) | Overall Depth (mm) | Internal Depth (mm) | Edge Rail (mm) |
|---|---|---|---|---|---|
| 1000 | 250 | 200 | 209 | 150 | 25 |
Evomax 200 Heelproof-10 Class D Iron Grate Technical Data
| Length (mm) | Overall Width (mm) | Overall Depth (mm) | Slot Opening Size (mm) | Bolts per metre |
|---|---|---|---|---|
| 500 | 245 | 25 | 10 | 4 |
Total weight of assembled Evomax 200 Class D Iron Grate (1m of channel and two iron grates) is 21.4kg.
Standards & Compliance
Evomax is part of the Technodrain range of products manufactured by Asoplast in Italy and brought to Australia by Mascot Engineering. As with all European products, they are tested to the load ratings found in EN1433 (their version of AS3996). This product is independently tested to load rating C250 (250kN – AS3996 Class D is 240kN) and copies of test certificates as well as declaration of performance certificates are available.
Click here to learn more about standards and compliance.
Product Datasheet Downloads
