WA Triple Interceptors

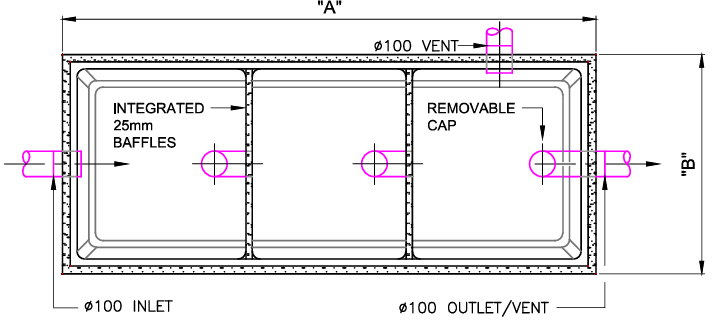

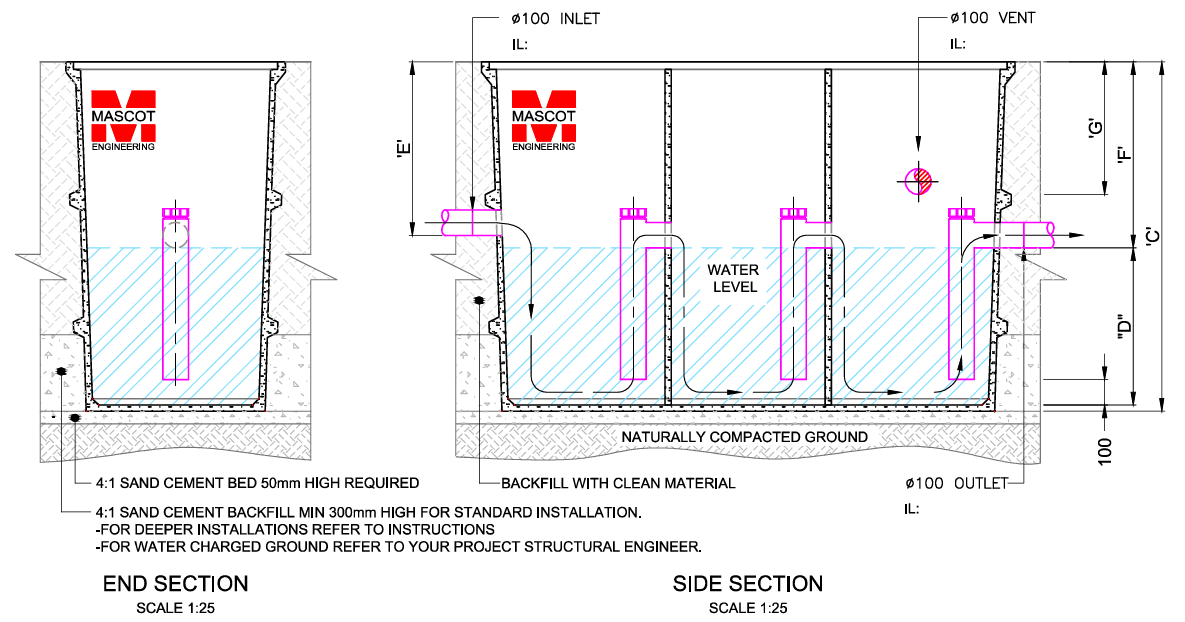

wa-triple-interceptors-diagram



Product CodeCapacity (L)A (mm)B (mm)C (mm)D (mm)E (mm)F (mm)G (mm)Mass (kg)
WATI176020508601370550750800650500
WATI2100020508601370700600650500500
WATI31500205086016701050550600450610
WATI42000205086019701400500550400720



Notes

  1. Tested and approved for installations up to 5000mm deep
  2. 300mm risers available
  3. Large range of concrete surrounds and gas tight covers to suit all load ratings
  4. MPa rating for GRC – 60 MPa @ 28 days
  5. Available extras:
    1. Step irons
    2. Support frame & work platforms for above ground installations.
  6. Other pipe sizes available upon request
  7. Fitted standard with PVC fittings. Other material (HDPE etc) available
  8. Installation instructions must be followed
  9. Cover will add to overall depth
  10. Internally coated with acid resistant tar epoxy paint
