VIC Cooling Pits



Victoria Cooling Pits



Product CodeCapacity (L)A (mm)B (mm)C (mm)D (mm)E (mm)F (mm)Mass (kg)
VAMDCL220060060060011253251225115
VAMDCL440090090060010752751225205
VAMDCL660090090075010751251225230
VAMDCL88001200120072012253051425375
VAMDCL1010001200120090015254251725475
VAMDCL12120012001200107515252501725510
VAMDCL15150012001200135018252752025570

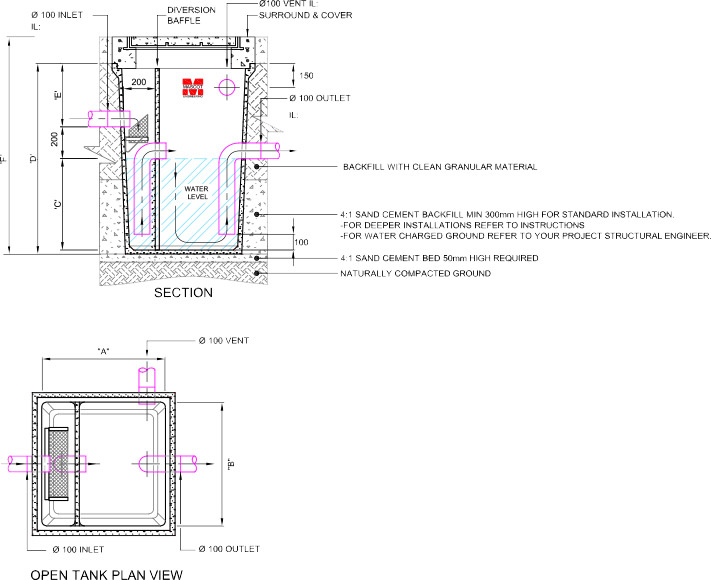

Above weights do not include cover.  Dimensions ‘A’ and ‘B’ are internal.



Notes

  1. Tested an approved for installations up to 5000mm deep
  2. 300mm risers available.
  3. Large range of concrete surrounds and covers to suit all load ratings.
  4. MPa rating for GRC – 60 MPa @ 28 days.
  5. Available extras:
    1. Step irons
    2. Support frame & work platforms for above ground installations.
  6. Other pipe sizes available upon request
  7. Fitted standard with PVC fittings. Other material (HDPE etc) available
  8. Cover will add to overall depth
  9. Internally coated with acid resistant tar epoxy paint
  10. Above weights do not include cover
