Cable Pit sizes

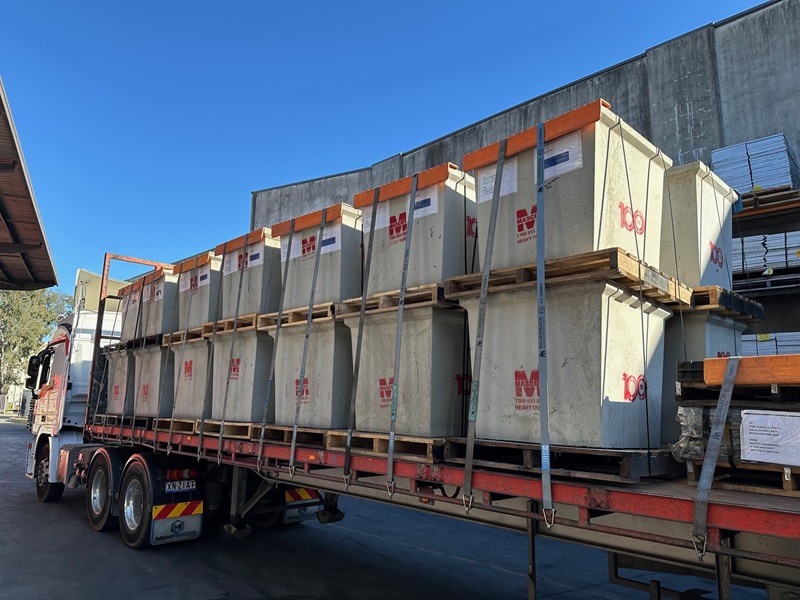

Mascot GRC Electrical Pits are heavy duty for all load ratings, however lightweight to ease installation and reduce transport costs.

Below you will find a list of standard electrical and communication pit sizes as well as the risers available to suit. All Mascot Pits are engineered and approved to a depth of 5000mm and we have stock Australia wide.

Pits and Risers sizing chart



cable-pit-sizes



TypeProduct RangeInternal Clear Opening SizeDepthOverall Width (a)Overall Length (b)Weight (kg)
PitCJP030300x30030033033012
PitCJP145375x37545039239220
RiserCJP1R45357x37545039239219
PitCJP250450x45050055055031
PitCJP280450x45080055055059
RiserCJP2R30450x45030055055024
RiserCJP2R60450x45060055055039
PitCJP350600x60050070070058
PitCJP380600x60080070070096
RiserCJP3R175600x60017570070029
RiserCJP3R30600x60030070070032
RiserCJP3R60600x60060070070052
PitCJP460900x600600700100076
PitCJP475900x600750700100085
RiserCJP4R30900x600300700100031
RiserCJP4R60900x600600700100069
PitCJP560900x9006001010101094
PitCJP575900x90075010101010133
PitCJP590900x90090010101010121
RiserCJP5R175900x9001751010101038
RiserCJP5R30900x9003001010101045
RiserCJP5R60900x90060010101010100
RiserCJP5R90900x90090010101010137
PitCJP6901100x110090012001200268
RiserCJP6R301100x11003001200120096
RiserCJP6R601100x110060012001200175
PitCJP750600x30050070040025
PitCJP8901260x4559001360555124
RiserCJP8R301260x455300136055578
PitCJP970585x24574068034048

All dimensions in mm and correct at time of print and may vary/change
